TrueNet FX is loaded by entering the address of the system in the
browser address bar, just like accessing any web site. Within a few
moments TrueNet FX is ready to use.
Jobs can be started in as little as 2 clicks !
Starting
a job in TrueNet FX is easy. Whether selecting a disc image, or
creating a label file, the user interface is both powerful and user
friendly. Create all job types from one dialog, including Drag &
Drop data/video mastering and creating a label for your discs. Even
discs sets can be created, starting right here!
E-Mail Notifications made easy
Each user can choose on a job by job basis what E-Mail notifications they want to receive, including :
- Confirm the job has started
- Confirm the job completed
- Confirm any changes to the job
- Warn when the media is running low (selectable threshold - NS-4500 only)
- Warn when then Ink/Ribbon supplies are running low (selectable threshold)
- Warn if the job is delayed for any reason
- Alerts for Hopper Empty, Ink/Ribbon Empty and more...
Editing Jobs
By
double clicking a job in the main status window, or right clicking a
job then selecting edit from the pop-up menu, the Edit Job dialog
allows instant changes to :
- Job Quantity
- Job Reference
- Job Priority
- Compare (turn on/off in real time)
- Audit (turn on/off in real time)
- No-Overlap Function (turn on/off in real time)
- All E-Mail notification settings
Drag & Drop Mastering
TrueNet FX provides Drag & Drop mastering within the web browser for :
- CD, DVD & Blu-ray
- ISO 9660 with option Joliet extensions
- UDF 1.02 for DVD Video
- UDF 2.60 for Blu-ray Video
TrueNet
FX supports virtual images. A virtual image is built while the data is
transferred to the publishing system, eliminating the need to create a
disc image on your local computer hard disk. This saves a significant
amount of time and storage space. TrueNet FX also supports building
industry standard ISO files for archiving and later use in jobs.
Multi Disc Sets - Even With Mixed Media
Creating
and using disc sets could not be easier! TrueNet FX allows up to 99
master discs to be added to a set and run as a single job--as if it
were a single disc. Simply tell TrueNet FX how many sets you want and
the discs will be produced in set order, providing instant collated
sets with little effort. Once created, a Disc Set can be used over and
over again for quick and easy re-runs.
On systems that
support more than one media type (e.g. the NS-4500) the Disc Sets
feature even allows mixed media within the set, meaning a single disc
set could include CDs, DVDs and even Blu-ray discs, and the system will
automatically select the correct input for the required media type.
Label Editing Built In
The
TrueNet FX Label Editor provides a fully integrated Label Editing
solution, enabling you to create your disc labels without ever having
to leave the TrueNet FX browser environment. Import of industry
standard graphics files is supported along with all fonts present on
your system.
In addition to standard labels, the Label
Editor goes a step further by providing automated dynamic fields for
Date & Time, Serialization, Database Mail-Merge functions for
personalized unique discs, and user prompted form fields for
standardized corporate label templates.
Form Field Prompts
In
some environments it may be desirable to disable the ability of some
users to create or edit their own labels. This could be because there
is a standard corporate requirements for a specific logo, copyright or
other text. However, users may need to add unique data to the labels to
identify the contents, or perhaps a client or medical patient. TrueNet
FX provides a Label Editing Lockout feature, but still allows users to
select ready-made label templates containing form fields that prompt
the user to enter the appropriate data when the template is selected.
In the example above, four form fields were added to the label
template. Each time a user selects the template they are prompted to
complete the details for 'Patient Name', 'Department', 'Consultant' and
'Reference'. Note that these fields are completely user defined,
allowing you to produce completely customized form field prompts.
Label Preview
All
label templates can be previewed on-screen prior to starting a job; any
dynamic data, such as serialization, data mail-merge and user prompted
form fields, are displayed as live data in the label preview.

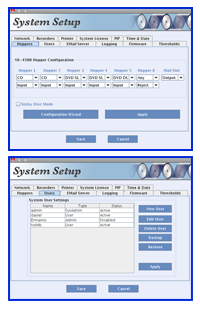

System Administration
System administration is easy within TrueNet FX. A multi tabbed dialog allows access to all areas of the system, including:
- Hopper Settings - used to configure media types within the publishing system
- User Settings - used to maintain users within the system
- Network Settings - configure for DHCP or fixed IP
- Recorder Settings - controls active recorders
- Media and Ink/Ribbon Thresholds
- E-Mail settings, including Server and E-Mail copy addresses
- System Logging
- Time & Date Settings
...and more.
